Organophilic clay

OrganoClay is used as an additive in a variety of products across a wide range of industries.

Organoclay can be used to remove oil from water due to its large surface area and hydrophobic chains emerging from the clay surface.

It is also used in paint formulations and as a viscosifier in oil-based in drilling fluid. It can be used as a nucleating agent in polymer chemistry.

Organoclay has been shown to improve oil recovery rates in oil fields through several mechanisms, including its ability to adsorb organic liquids onto its surface.

Organoclay is a combination of an inorganic compound and an organic polymer formed by the reaction of alkyl amines and clays. At high temperatures, the alkyl groups of the amines react with the surface silanol groups of the clay to form a covalent bond.

What is OrganoClay Used For?

Organoclay is used in a variety of applications, such as paint and coating formulations, in drilling fluid, personal care products, oil recovery, and cosmetic viscosifiers.

Organophilic clay suppliers : Zhejiang Camp Shinning Co.Ltd is your best partner. If you want to know more manufacturing process and the use of organophilic clay ,pls contact us now.

Suppliers of Organophilic Clay  composition with good organoclay price
To reap the benefits of Organophilic Clay composition , you must first learn how to obtain it from a supplier.

You can also learn more about this type of clay by registering with a reputable online trade directory. You can expand your international business by purchasing bentonite organoclay from a supplier. Some of the advantages of becoming a registered member of an online trade directory are listed below.

Bentonite, an organophilic clay
Organophilic clay is a white powder that is also known as organoclay. Its color is determined by the type of bentonite ore used. It works well as an anti-sagging agent in paints and coatings.

Organophilic clay will not settle if stored for an extended period of time. Organic bentonite is now produced by a number of companies. Learn more about their manufacturing processes in the sections below.

Ordinary bentonite is modified during the ion exchange process by the addition of organic-based cation compounds known as quaternary ammonium salts. Adsorbents are inorganic cations.

Organobentonite clay have a high hydrocarbon adsorption capacity with organoclay price . The number of associated with organoclays increases the capacity for organic contaminant adsorption.

Previous research has also found that the number of carbons associated with organoclay reduces the rate of advection and dispersion of contaminated substances.

Organophilic clay bentonite cost
The cost of organobentonite clay bentonite varies according to the processing method and purity. Prices per kilogram range from $1.7 to $3.2 USD.

Organoclay is white in color and varies depending on the bentonite clay ore used. It is available in China at factory prices. Some sources provide lower prices. China is the best place to buy organophilic clay bentonite because the raw material is so cheap.

Organo bentonite clay is a type of additive that can regulate liquid viscosity. It is suitable for use in mineral oil, diesel, and synthetic oils. This clay is resistant to high temperatures and pressure.

It also improves hole cleanliness during workover and drilling operations. However, the cost of organophilic clay bentonite clay may vary depending on the manufacturer. Here are some of its most important applications and advantages.

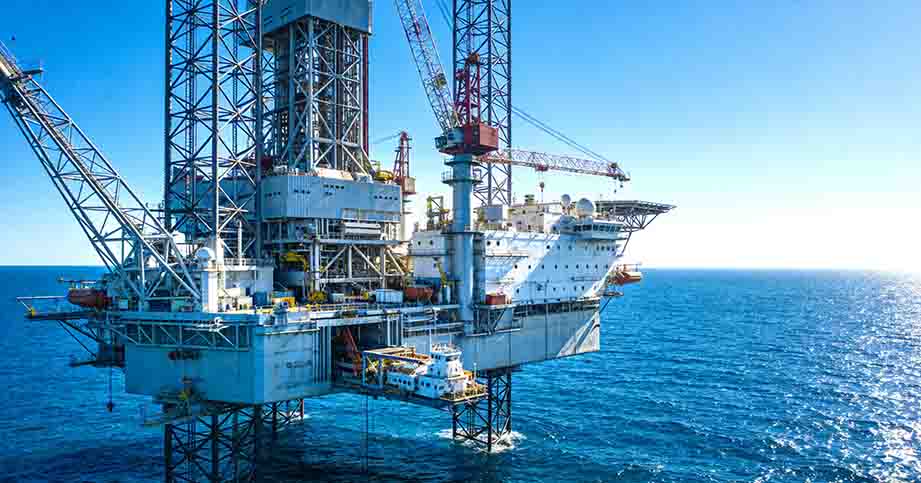

Bentonite, an organophilic clay, is used in oil drilling mud.
The goal of this research was to create a synthetic, organophilic clay hs code  : 2508.1000.

bentonite clay could disperse into a continuous phase in a soybean oil-based oil drilling mud. Surface tension measurements were taken to assess the surface modifications of the clays. Rheological behavior and surface tension measurements were performed on the fluid itself.

The 2% concentration of organophilic clay hs code (2508.1000)  improved the performance of the base mud significantly.

Organo clays are clays with a high affinity for organic compounds. They are made by adding an onium base to water slurries of swellable clays, such as ammonium, phosphonium, sulfonium, arsonium, stibonium, oxonium, and the like, causing the onium base to react with the clay to form organophilic clays.

The organophilic clays produced can be used in a variety of industries, including oil and gas production, petrochemical production, environmental remediation, and other industries that require water treatment or separation processes.

Organo clay  are created by adding an onium base (e.g., ammonium), such as ammonium hydroxide or sodium hydroxide, to water slurries of swellable clays like bentonite and kaolin, causing the onium base to react with the clay and form organo bentonite clay.

The amount of oil base added is determined by the type of clay used and its concentration in solution (i.e., what percentage of solids).

The mineral clay bentonite is an organophilic clay. Its exterior is covered in chemicals. It is a bentonite modification. In certain uses, it can distribute oil. In oilfield drilling, it is utilized as a suspension agent.

The production and manufacturing of organo bentonite is a highly complex and concentrated process. It involves filtration, drying, and other production processes.

Also applicable to bentonite clay in scattered water. Bentonite is used to improve the rheological qualities of petroleum slurry. It is utilized for cutting, lifting, and suspending. They also contribute to the formation of low-permeability filter cakes. Bentonite, an organophilic clay, produces better results.

However, when applied to oil drilling, organo clay bentonite will have a relatively good gel structure. It will result in improved shear and a damaged gel structure, which may also decrease gradually.

Organophilic clay bentonite is primarily employed to enhance the removal of cutting materials, aid in the formation and filtration control of filtering cake, and enhance the suspension performance to support the distribution system.

Organophilic clay bentonite is therefore a form of organo clay bentonite that has been subjected to a security modification process. It is utilized as an adhesive and gelling agent in the VERSA oil-based and NOVA synthetic-based systems.

It is often an off-white or brown-black powder with a specific gravity of around 1.57 and a bulk density of 33 lbm/ft3 [528 kg/m3].

Application.

In reality, the performance of Organophilic clay bentonite drilling in coring, workover, and completion fluids is exceptional, and it is also extremely useful in a number of specialized applications.

Casing packs, packer fluids, and spotting fluids require adequate mixing and sufficient shear power to complete their viscosity when utilizing the organobentonite trainer to produce fresh mud.

When utilizing Organophilic clay bentonite, mineral oil typically requires a higher concentration than diesel oil;

therefore, when selecting our organoclays bentonite, please inform us that your base oil, our organoclay bentonite cp series, is primarily intended for shearing in the mixing of cement slurry, and will not completely yield under the influence of temperature.

Please do not apply excessive organo bentonite treatment. To determine the use amount for your complete formula, you must consider the real need for liquid circulation in the well. Gleichzeitig können we keep the flow properties and gel strength within the acceptable range.

advantage.
Increase viscosity, enhance core cleaning capacity, enhance the quality and filtration properties of Filtering cake, and give gel structure and viscosity to suspend heavy contaminants.

Typically, organo bentonite is packaged and stored in a 50-pound (22.7-kilogram) export-standard Valve bag. We advise storing it in a dry, well-ventilated area with its packing intact and bees away from incompatible substances. Please adhere to safe practices, including shrink-wrapping and stacking.

Organic bentonite is produced by inserting 28 alkyl dimethyl ammonium ions into the product space of modified bentonite. This exemplifies excellent Whiteness.

It is mostly derived from modified bentonite. In addition, its impurity concentration is relatively low, making it appropriate for cosmetics, oil-based mud, coatings, and grease inks, among other applications.

There are many organophilic clay type in China.

As a modified bentonite, its main raw material comes from natural bentonite ore, where the original interlayer cations are exchanged for organic cations (usually alkyl quaternary ammonium bentonite).

It consists of covalently linked organic parts as an affinity specialty organophilic clay product. Besides its use as a suspending agent in oilfield drilling fluids, it is also used in paint coatings, lubricating greases, thickening agents, rheology modifiers, and anti-settling agents.

The main processing methods for organic bentonite are dry production and wet production. The primary goal is to achieve environmentally friendly production, offering high-quality thickening rheological agents with suspension capabilities and thixotropic performance. It is a non-hazardous chemical additive for transportation.

Its main advantage lies in easy dispersibility as a high-quality gel product. It can be used in low to high polarity ranges, suspend particles, prevent settling of pigments and fillers, and has broad applications without the need for chemical activators.

In the field of oil-based mud drilling fluids, it can be applied in workover fluids, completion fluids, sealing fluids, reverse emulsion fluids, fracturing fluids, etc.

Our packaging options are mainly 25 kg bags and 50 lb bags, but we can customize packaging according to customer requirements using multi-layer paper bags. We recommend storing it in a dry, cool place with a normal shelf life of 24 months.

As a thickening and gelling agent, it can be used in VERSA oil-based and NOVA synthetic-based systems. It can improve and clean cuttings, aid in filter cake formation and loss.

Overall, the suspension capacity of thickening rheological agents plays an important role throughout drilling fluids.

Our high-temperature and high-pressure stable specialty organophilic clay product is proven effective as a suspending agent in drilling, coring, workover, and completion fluids. It also plays a crucial role in casing pack fluids, sealing fluids, and spotter fluids.

Depending on the base oil used, we recommend different types of organic bentonite; for instance, its concentration in diesel-based drilling fluids is generally lower than in mineral oil-based ones.

We advise you to pay close attention to the amount of organic bentonite added and conduct experiments to obtain the desired data. Our suggestions are for reference only.

The greatest advantage of organic bentonite is its ability to increase viscosity and improve wellbore cleanliness, enhance filter cake quality and filtration capacity, and increase suspension capability.

We are leaders in the field of specialty organophilic clay product formulation chemicals supply. Our organic bentonite provides rheological properties and viscosity control for drilling muds and other oil and gas fluids.

Whether wet or dry organic bentonite is needed for offshore or onshore drilling platforms, we can provide you with the appropriate types that offer stability under high-temperature and high-pressure conditions.

Organophilic clay represents one of the most versatile and valuable modified clay materials in modern industrial applications.

This comprehensive guide explores everything procurement professionals, engineers, and technical specialists need to know about organo clay – from fundamental principles to advanced applications, selection criteria, and performance optimization.

Whether you’re seeking to enhance drilling fluid performance, improve rheological properties in industrial formulations, or develop advanced environmental remediation solutions, this guide provides the authoritative information you need to make informed decisions about organophilic clay products.

What is Organophilic Clay? (Definition and Composition)

Organophilic clay is a specially modified clay mineral whose surface properties have been transformed from naturally hydrophilic (water-loving) to organophilic (organic-loving) through a chemical modification process. This transformation enables the clay to disperse and function effectively in organic and non-aqueous systems, making it invaluable across numerous industrial applications.

Scientific Definition and Structure

At its core, organophilic clays is an organically modified phyllosilicate, derived from naturally occurring clay minerals such as bentonite, hectorite, or attapulgite.

The modification process involves an ion exchange reaction where the original interlayer cations (typically sodium, calcium, or magnesium) are replaced with organic cations, most commonly quaternary ammonium compounds (QACs).

The resulting structure maintains the layered silicate framework of the original clay but gains an organophilic surface consisting of covalently linked organic moieties.

This unique structure creates a material with dual functionality – the inorganic clay backbone provides structural integrity and thermal stability, while the organic surface components enable compatibility with organic systems.

The molecular structure of organo bentonite clay can be visualized as stacked platelets with organic molecules attached to their surfaces. These organic components typically feature long hydrocarbon chains that extend outward from the clay surface, creating an organic-compatible environment.

The spacing between clay platelets (interlayer spacing) increases during this modification, which can be measured using X-ray diffraction techniques.

Types of Organophilic Clays

Organo clays can be classified based on several factors, including the base clay mineral, the organic modifier used, and the intended application:

1. Base Clay Mineral Types:

1. Bentonite-Based Organophilic Clays: The most common type, derived from montmorillonite, a type of smectite clay. These offer excellent swelling and gelling properties in organic media.
2. Hectorite-Based Organophilic Clays: Made from hectorite, these provide superior clarity and are often preferred for applications requiring transparency.
3. Attapulgite-Based Organophilic Clays: Derived from attapulgite (palygorskite), these needle-like structures provide unique rheological properties and are effective at lower concentrations.
   2. Organic Modifier Types:
4. Quaternary Ammonium Compounds (QACs): The most common modifiers, including dimethyl dihydrogenated tallow ammonium chloride (DMHT) and benzyl dimethyl hydrogenated tallow ammonium chloride (BMHT).
5. Quaternary Phosphonium Compounds: Offer enhanced thermal stability compared to ammonium-based modifiers.
6. Imidazolium-Based Modifiers: Provide specialized properties for specific applications.
   3. Application-Specific Types:
7. Drilling-Grade Organophilic Clays: Optimized for oil-based drilling fluids with specific rheological profiles.
8. Industrial-Grade Organophilic Clays: Designed for paints, coatings, and industrial applications.
9. Environmental-Grade Organophilic Clays: Formulated for maximum adsorption capacity in environmental remediation.
10. Specialty Organophilic Clays: Custom-formulated for specific performance requirements.

Each type offers distinct advantages for particular applications, making the selection process critical for optimal performance.

Key Components and Raw Materials

The production of high-quality organobentonite clay requires careful selection of raw materials:

1. Base Clay Minerals:

1. Sodium Bentonite: The primary raw material, ideally with high montmorillonite content (>85%) and low impurities.
2. Hectorite: A magnesium-rich smectite clay used for specialty applications.
3. Attapulgite: A needle-like clay mineral used for specific rheological properties.
   2. Organic Modifiers:
4. Quaternary Ammonium Salts: Including dimethyl dihydrogenated tallow ammonium chloride, benzyl dimethyl hydrogenated tallow ammonium chloride, and dimethyl benzyl hydrogenated tallow ammonium chloride.
5. Amine Compounds: Various amine-based compounds for specialized modifications.
6. Specialty Organic Compounds: For custom performance characteristics.
   3. Processing Additives:
7. Dispersants: To ensure uniform modification.
8. pH Regulators: To optimize the ion exchange reaction.
9. Purification Agents: To remove impurities from the base clay.

The quality and purity of these raw materials significantly impact the performance of the final organophilic clay product. Premium-grade organoclays utilize highly purified base clays and precisely controlled organic modifiers to ensure consistent performance.

Manufacturing Process

The production of organophilic clay involves several critical steps:

1. Clay Preparation:

1. Purification: Removal of impurities from the raw clay through various physical and chemical processes.
2. Size Classification: Ensuring uniform particle size distribution.
3. Dispersion: Creating a stable aqueous suspension of the clay particles.
   2. Organic Modification:
4. Ion Exchange Reaction: The core process where organic cations replace the inorganic cations in the clay structure.
5. Temperature Control: Maintaining optimal reaction conditions.
6. Mixing Parameters: Ensuring uniform modification throughout the clay structure.
   3. Post-Treatment:
7. Filtration: Removing excess reagents and byproducts.
8. Washing: Eliminating residual chemicals.
9. Drying: Reducing moisture content to specification levels.
   4. Finishing Operations:
10. Grinding: Achieving the desired particle size.
11. Blending: Creating consistent product batches.
12. Quality Testing: Verifying performance characteristics.

Advanced manufacturers employ proprietary techniques to enhance the efficiency of the organic modification process and the performance of the final product. These may include specialized reaction vessels, precise temperature control systems, and innovative mixing technologies.

This evolution continues today, with ongoing research focused on enhancing performance, expanding applications, and improving sustainability aspects of organophilic clay technology.

The understanding of organophilic clay has progressed from empirical observations to sophisticated molecular engineering, enabling the development of increasingly specialized products for specific industrial challenges.

How Organophilic Clay Works (Mechanism and Properties)

Understanding the fundamental mechanisms and properties of organophilic clay is essential for optimizing its performance across various applications. This section explores the scientific principles that make organo clays such a versatile industrial material.

Chemical Mechanism and Interactions

The functionality of organophilic clay stems from its unique chemical structure and the resulting interactions with surrounding media:

1. Ion Exchange Mechanism:

1. The primary modification process involves the exchange of inorganic cations (Na⁺, Ca²⁺) in the clay interlayers with organic cations, typically quaternary ammonium compounds.
2. This exchange is driven by concentration gradients and the higher affinity of clay surfaces for larger organic cations.
3. The efficiency of this exchange, often measured as the cation exchange capacity (CEC), directly influences the performance of the final product.
   2. Organic-Inorganic Hybrid Structure:
4. The resulting material combines the inorganic silicate framework of the clay with organic components attached to the surfaces.
5. This hybrid structure creates unique interface properties that are neither purely organic nor purely inorganic.
6. The organic components typically orient themselves perpendicular to the clay surface, with their hydrophobic tails extending outward.
   3. Interaction with Organic Media:
7. When introduced to organic systems (oils, solvents, polymers), the organic components of the organophilic clay interact favorably with the surrounding medium.
8. These interactions include van der Waals forces, hydrophobic interactions, and in some cases, hydrogen bonding.
9. The strength and nature of these interactions determine the dispersion, swelling, and rheological properties in the specific medium.
   4. Network Formation:
10. In appropriate media, organophilic clay particles can form three-dimensional networks through edge-to-edge and edge-to-face interactions.
11. These networks create the characteristic thixotropic behavior and yield stress observed in many organophilic clay systems.
12. The strength and stability of these networks depend on factors such as clay concentration, organic modifier type, temperature, and the presence of other additives.

Understanding these mechanisms allows formulators to select the appropriate organophilic clay type and optimize conditions for specific applications.

Physical Properties and Characteristics

Rheology modifier exhibit a range of physical properties that make them valuable across diverse applications:

1. Appearance and Form:

1. Typically off-white to tan powders, though color can vary based on the base clay mineral and organic modifier.
2. Fine particle size, usually in the range of 10-50 microns.
3. Low bulk density, typically 0.4-0.7 g/cm³.
   2. Surface Properties:
4. High surface area, typically 200-800 m²/g, providing extensive interaction potential.
5. Organophilic (hydrophobic) surface character, contrasting with the hydrophilic nature of unmodified clays.
6. Variable surface charge distribution, influenced by the type and density of organic modifiers.
   3. Structural Characteristics:
7. Increased interlayer spacing compared to unmodified clays, typically expanding from ~1 nm to 2-4 nm.
8. Layered structure with organic molecules intercalated between silicate layers.
9. Aspect ratio (diameter to thickness ratio) typically in the range of 100-1000, contributing to their effectiveness as rheological modifiers.
   4. Thermal Properties:
10. Thermal stability typically up to 200-250°C, depending on the organic modifier.
11. Decomposition of organic components at higher temperatures, reverting to inorganic clay structure.
12. Potential for char formation during thermal decomposition, which can provide flame-retardant properties in some applications.

These physical properties can be tailored through careful selection of the base clay mineral, organic modifier type and loading, and processing conditions.

Rheological Properties

The rheological modification capability is perhaps the most commercially significant property of organophilic clays:

1. Thixotropic Behavior:

1. Organic clay impart thixotropy (time-dependent shear thinning) to many systems.
2. This property manifests as gel formation at rest and flow under applied shear, returning to gel state when shear is removed.
3. The recovery rate after shear can be tailored through formulation adjustments.
   2. Yield Stress Development:
4. Creation of a yield stress in fluid systems, preventing settling of suspended particles.
5. The magnitude of yield stress depends on clay concentration, activation level, and system composition.
6. This property is particularly valuable in drilling fluids, paints, and adhesives.
   3. Viscosity Enhancement:
7. Significant increase in system viscosity, particularly at low shear rates.
8. Shear-thinning behavior, with viscosity decreasing as shear rate increases.
9. Temperature-dependent viscosity profiles that can be tailored for specific applications.
   4. Suspension Stability:
10. Ability to maintain particles in suspension through both yield stress and viscosity effects.
11. Long-term stability against settling and separation.
12. Resistance to syneresis (liquid separation) in gel systems.

These rheological properties make organophilic clays indispensable in applications requiring controlled flow behavior, suspension stability, and structural recovery.

Adsorption and Absorption Capabilities

Beyond rheological modification, organic bentonite clay exhibit remarkable adsorption properties:

1. Organic Contaminant Adsorption:

1. High affinity for organic pollutants, including oils, greases, PCBs, PAHs, and many organic dyes.
2. Adsorption capacities typically ranging from 40-400 mg/g, depending on the contaminant and clay type.
3. Selective adsorption based on molecular size, shape, and polarity.
   2. Adsorption Mechanisms:
4. Partitioning of organic compounds into the hydrophobic regions created by the organic modifiers.
5. Surface adsorption through van der Waals forces and hydrophobic interactions.
6. Potential for specific interactions based on functional groups present in the organic modifier.
   3. Absorption Properties:
7. Swelling and absorption of organic liquids between clay layers.
8. Capacity to absorb 2-5 times their weight in oils and organic solvents.
9. Retention of absorbed materials even under pressure.
   4. Regeneration Potential:
10. Possibility for regeneration after adsorption through solvent washing or thermal treatment.
11. Multiple adsorption-desorption cycles possible for some applications.
12. Potential for recovery of valuable adsorbed materials.

These adsorption properties make organophilic clays valuable in environmental remediation, waste treatment, and specialized filtration applications.

Stability and Performance Under Different Conditions

The performance of organophilic clays varies significantly under different environmental conditions:

1. Temperature Effects:

1. Generally stable and functional up to 150-200°C in most applications.
2. Potential for decreased efficiency at elevated temperatures due to increased molecular motion.
3. Specific high-temperature formulations available for demanding applications.
   2. Chemical Environment Impacts:
4. Sensitivity to pH extremes, with potential degradation under strongly acidic or alkaline conditions.
5. Compatibility with a wide range of organic solvents and oils.
6. Potential for ion exchange with multivalent cations in the system, which can affect performance.
   3. Salinity Tolerance:
7. Generally good resistance to salt effects, unlike conventional bentonite.
8. Maintained functionality in high-salinity environments, making them valuable in oilfield applications.
9. Specific salt-tolerant grades available for extreme conditions.
   4. Aging and Long-term Stability:
10. Excellent shelf stability when properly stored.
11. Potential for gradual performance changes in formulated systems over extended periods.
12. Resistance to microbial degradation due to the quaternary ammonium components, which often have antimicrobial properties.

Understanding these stability factors is crucial for selecting the appropriate organophilic clay grade and optimizing formulations for specific operating conditions.

The combination of these mechanisms and properties makes organophilic clay a remarkably versatile material across numerous industrial applications, from drilling fluids to environmental remediation. By understanding these fundamental principles, formulators and engineers can maximize the performance benefits of organophilic clay in their specific systems.

Applications of Organophilic Clay Across Industries

Organophilic clay has established itself as a versatile material with applications spanning numerous industries. Its unique properties make it invaluable in diverse settings, from deep-sea drilling operations to environmental remediation projects. This section explores the major application areas and provides insights into how organophilic clay delivers value across different industrial contexts.

Oil and Gas Drilling Applications

The oil and gas industry represents one of the largest markets for organophilic clay, where it plays a critical role in drilling fluid formulations.

Oil-Based Drilling Fluids

Organophilic clay serves as the primary rheological modifier and suspension agent in oil-based drilling fluids (OBFs), also known as oil-based muds (OBMs):

1. Rheological Control:

1. Provides essential viscosity and gel strength to carry drill cuttings to the surface
2. Creates thixotropic properties that allow the fluid to thin during pumping but gel when circulation stops
3. Maintains consistent rheological properties across a wide temperature range (from near-freezing seabed to high-temperature deep formations)
   2. Suspension Capabilities:
4. Keeps weighting materials (like barite) suspended during drilling pauses
5. Prevents settling of drill cuttings when circulation stops
6. Maintains homogeneous fluid properties throughout the wellbore
   3. Filtration Control:
7. Contributes to the formation of a thin, low-permeability filter cake on wellbore walls
8. Reduces fluid loss into permeable formations
9. Helps prevent differential sticking of drill pipe
   4. Temperature Stability:
10. Maintains performance at high bottomhole temperatures (up to 400°F/204°C with specialized grades)
11. Provides consistent properties during temperature cycling
12. Resists thermal degradation better than many alternative rheology modifiers
    5. Formulation Flexibility:
13. Compatible with various base oils (diesel, mineral oil, synthetic oils)
14. Works effectively with different emulsifier systems
15. Can be combined with other additives without negative interactions

Synthetic-Based Drilling Fluids

As environmental regulations have tightened, synthetic-based drilling fluids (SBFs) have gained prominence, with organophilic clay playing a crucial role:

1. Environmental Advantages:

1. Functions effectively in environmentally preferred synthetic base fluids
2. Contributes to formulations with reduced environmental impact
3. Supports compliance with stringent offshore drilling regulations
   2. Performance Benefits:
4. Provides superior rheological properties in synthetic oils compared to conventional organoclays
5. Maintains effectiveness at lower concentrations, reducing overall mud costs
6. Offers improved low-temperature performance in deepwater applications
   3. Specialized Formulations:
7. Advanced organophilic clays specifically engineered for synthetic systems
8. Optimized activation in synthetic base fluids
9. Enhanced compatibility with synthetic fluid emulsifier packages

Workover and Completion Fluids

Beyond drilling, organophilic clay is valuable in workover and completion operations:

1. Workover Fluid Applications:

1. Provides controlled viscosity for well intervention operations
2. Suspends solids during extended workover procedures
3. Maintains wellbore stability during workover operations
   2. Completion Fluid Benefits:
4. Contributes to fluid loss control during completion
5. Helps maintain zonal isolation
6. Compatible with completion hardware and production zones
   3. Specialty Applications:
7. Packer fluids for long-term stability
8. Casing packs for annular isolation
9. Spotting fluids for freeing stuck pipe

Case Studies and Success Stories

Case Study 1: Deepwater Gulf of Mexico

A major operator in the Gulf of Mexico faced challenges with rheological stability in a deepwater well with bottom hole temperatures exceeding 300°F (149°C). Conventional organophilic clay products showed significant degradation at these temperatures, leading to barite settling and poor hole cleaning.

By implementing a high-temperature organophilic clay specially formulated with thermally stable quaternary compounds, the operator achieved:

• 40% improvement in high-temperature rheological stability
• Elimination of barite settling issues
• Successful drilling through difficult formations with minimal downtime
• Estimated cost savings of $1.2 million through reduced non-productive time

Case Study 2: Environmentally Sensitive Arctic Drilling

An Arctic drilling project required exceptional low-temperature performance while meeting stringent environmental regulations. A customized organophilic clay formulation was developed specifically for this application, resulting in:

• Maintained rheological properties at temperatures as low as 35°F (1.7°C)
• Passed all environmental toxicity tests for Arctic waters
• Reduced overall mud costs by 15% through lower treatment concentrations
• Zero environmental incidents throughout the drilling campaign

These case studies demonstrate the critical role that properly selected organophilic clay plays in challenging drilling environments, delivering both technical performance and economic value.

Industrial and Manufacturing Applications

Beyond oil and gas, organophilic clay serves as a key ingredient in numerous industrial products and manufacturing processes.

Paints and Coatings

Organophilic clay provides essential functionality in solvent-based paints and coatings:

1. Rheological Control:

• Imparts anti-sag properties to prevent dripping and running
• Provides thixotropic behavior for improved application characteristics
• Enables proper leveling after application
  2. Suspension Stability:
• Prevents pigment settling during storage
• Maintains uniform color distribution
• Extends product shelf life
  3. Application Benefits:
• Improves spray application properties
• Enhances brush and roller performance
• Provides consistent film thickness
  4. Performance Enhancement:
• Contributes to improved scrub resistance
• Enhances weathering properties
• Improves overall coating durability

Different grades of organophilic clay are formulated specifically for various coating systems, including architectural paints, industrial coatings, automotive finishes, and marine applications.

Inks and Adhesives

In printing inks and adhesive formulations, organophilic clay delivers critical performance attributes:

1. Ink Applications:

• Controls flow properties in lithographic and gravure inks
• Prevents pigment settling and separation
• Improves print quality and consistency
• Enhances color strength and gloss
  2. Adhesive Benefits:
• Provides non-sag properties for vertical applications
• Controls bond line thickness
• Improves gap-filling capabilities
• Enhances thermal stability of adhesive systems
  3. Specialty Formulations:
• High-clarity grades for transparent systems
• Fast-activating types for manufacturing efficiency
• High-temperature stable versions for demanding applications

Greases and Lubricants

Organophilic clay serves as a primary thickener in many non-soap greases and lubricants:

1. Performance Advantages:

• Exceptional thermal stability compared to soap thickeners
• Excellent water resistance
• Superior mechanical stability
• Effective performance across a wide temperature range
  2. Application Areas:
• Automotive greases for high-temperature applications
• Industrial lubricants for extreme conditions
• Marine greases requiring water resistance
• Food-grade lubricants (with appropriate organophilic clay grades)
  3. Technical Benefits:
• Prevents oil separation during storage and use
• Maintains consistency under high shear conditions
• Provides excellent adhesion to metal surfaces
• Resists washout in wet environments

Case Studies and Success Stories

Case Study 1: Automotive Coating Innovation

A leading automotive paint manufacturer faced challenges with their metallic finish coatings, including aluminum flake settling and inconsistent appearance. By incorporating a specially formulated organophilic clay, they achieved:

• 200% improvement in metallic flake suspension stability
• Enhanced metallic appearance uniformity
• Reduced manufacturing rejects by 35%
• Extended product shelf life from 6 months to 18 months

Case Study 2: Industrial Grease Performance

A heavy equipment manufacturer needed a grease for extreme pressure and temperature applications. A high-performance organophilic clay-based grease formulation delivered:

• Operating temperature range from -40°F to 500°F (-40°C to 260°C)
• 3x longer service life compared to conventional lithium complex greases
• Superior water washout resistance in field conditions
• Estimated maintenance cost reduction of 45% through extended relubrication intervals

These examples illustrate how organophilic clay contributes significant value across diverse industrial applications, solving specific technical challenges while delivering economic benefits.

Environmental Applications

The unique adsorption properties of organophilic clay make it increasingly valuable in environmental remediation and pollution control applications.

Wastewater Treatment

Organophilic clay serves as an effective adsorbent for removing organic contaminants from industrial wastewater:

1. Contaminant Removal Capabilities:

• Effectively adsorbs oils, greases, and hydrocarbons
• Removes organic pollutants including PCBs, PAHs, and phenols
• Captures certain pesticides and organic industrial chemicals
• Treats produced water from oil and gas operations
  2. Treatment System Integration:
• Used in fixed-bed adsorption columns
• Incorporated into filtration media
• Applied as powder for batch treatment processes
• Combined with other treatment technologies in multi-stage systems
  3. Performance Advantages:
• High adsorption capacity (typically 40-70% by weight for oils)
• Selective removal of organic contaminants even in the presence of water
• Effective at low contaminant concentrations (parts per billion range)
• Can be regenerated in some applications for multiple use cycles

Soil Remediation

Contaminated soil treatment represents another growing application area:

1. In-Situ Applications:

• Blended into contaminated soils to bind organic pollutants
• Reduces contaminant mobility and bioavailability
• Prevents leaching of organic pollutants into groundwater
• Accelerates natural attenuation processes
  2. Ex-Situ Treatment:
• Used in soil washing processes to capture released contaminants
• Incorporated into treatment beds for excavated soils
• Applied in solidification/stabilization technologies
• Component in reactive barriers for contaminated sites
  3. Target Contaminants:
• Petroleum hydrocarbons from fuel spills
• Chlorinated solvents from industrial sites
• Coal tar and creosote from former gas works
• Pesticides and herbicides from agricultural applications

Pollutant Removal

Specialized applications for specific pollutant challenges:

1. Oil Spill Response:

• Component in oil spill cleanup products
• Used in permeable barriers for containing oil spills
• Applied as powder for oil adsorption on water surfaces
• Incorporated into oil-selective booms and pads
  2. Industrial Emission Control:
• Adsorbent media in air pollution control systems
• Captures volatile organic compounds (VOCs)
• Removes oil mist from industrial exhausts
• Component in odor control systems
  3. Groundwater Remediation:
• Permeable reactive barriers for contaminated aquifers
• Injection into contaminated groundwater zones
• Well-casing filter packs for selective contaminant removal
• Funnel-and-gate remediation systems

Case Studies and Success Stories

Case Study 1: Industrial Wastewater Treatment

A chemical manufacturing facility struggled to meet discharge limits for organic pollutants using conventional treatment methods. After implementing an organophilic clay-based adsorption system:

• Reduced total petroleum hydrocarbons (TPH) from 120 ppm to <5 ppm
• Achieved 99.8% removal of priority organic pollutants
• Met all regulatory discharge requirements consistently
• Reduced treatment costs by 30% compared to activated carbon alternatives

Case Study 2: Brownfield Site Remediation

A former industrial site contaminated with a mixture of petroleum hydrocarbons and chlorinated solvents required remediation for commercial redevelopment. Using organophilic clay in a combined treatment approach:

• Reduced contaminant leachability by >95%
• Stabilized 45,000 cubic yards of contaminated soil on-site
• Eliminated off-site disposal costs estimated at $4.2 million
• Completed site remediation in 8 months versus 14 months for conventional approaches

These environmental applications demonstrate the expanding role of organophilic clay in addressing challenging pollution problems with cost-effective, efficient solutions.

Emerging Applications and Future Trends

The versatility of organophilic clay continues to drive innovation and new applications across multiple industries.

Nanocomposites and Advanced Materials

Organophilic clay serves as a key component in polymer nanocomposites and advanced materials:

1. Polymer-Clay Nanocomposites:

• Enhances mechanical properties including tensile strength and modulus
• Improves thermal stability and heat distortion temperature
• Reduces gas permeability for improved barrier properties
• Enhances flame retardancy without toxic halogenated additives
  2. Advanced Coating Systems:
• Contributes to scratch and abrasion resistance
• Improves UV stability and weathering resistance
• Enhances corrosion protection properties
• Enables development of self-healing coating technologies
  3. Functional Materials:
• Platforms for catalytic systems
• Components in sensor technologies
• Controlled release systems for active ingredients
• Electrically conductive composites when combined with conductive polymers

The field of nanocomposites represents one of the fastest-growing application areas for organophilic clay, with new developments continually emerging from research laboratories worldwide.

Cosmetics and Personal Care

The personal care industry increasingly utilizes organophilic clay for its multifunctional benefits:

1. Cosmetic Applications:

• Rheology control in oil-based formulations
• Suspension of active ingredients and pigments
• Oil absorption in makeup products
• Texture enhancement in creams and lotions
  2. Performance Benefits:
• Improves product stability and shelf life
• Enhances application properties and skin feel
• Provides controlled oil release in skin care products
• Contributes to water resistance in sunscreens and makeup
  3. Natural and Organic Formulations:
• Compatible with natural oils and ingredients
• Can be formulated with naturally-derived organic modifiers
• Supports clean beauty trends with appropriate grades
• Enhances performance of natural formulations

Pharmaceutical and Medical Applications

Emerging applications in pharmaceutical and medical fields show promising results:

1. Drug Delivery Systems:

• Controlled release platforms for active pharmaceutical ingredients
• Enhanced bioavailability of poorly soluble drugs
• Targeted delivery systems using modified organophilic clays
• Stabilization of sensitive pharmaceutical compounds
  2. Medical Devices:
• Components in advanced wound dressings
• Antimicrobial surfaces when combined with appropriate agents
• Rheological control in medical gels and ointments
• Reinforcement in biocompatible polymers for implantable devices
  3. Biomedical Research:
• Cell culture substrates with controlled properties
• Platforms for protein immobilization
• Components in biosensors and diagnostic devices
• Vehicles for gene delivery in research applications

Research and Development Directions

Current research points to several promising future directions:

1. Sustainable Formulations:

• Bio-based organic modifiers from renewable resources
• Reduced environmental impact manufacturing processes
• Biodegradable organophilic clay variants
• Enhanced recyclability and end-of-life considerations
  2. Smart Materials:
• Stimulus-responsive organophilic clay systems
• Self-healing capabilities in composite materials
• Programmable rheological properties
• Multi-functional materials with sensing capabilities
  3. Advanced Processing Technologies:
• Continuous flow manufacturing methods
• Precision surface modification techniques
• Hybrid organic-inorganic architectures
• Tailored particle morphologies for specific applications
  4. Computational Design:
• Molecular modeling for optimized organic modifiers
• Predictive performance tools for formulation development
• Digital twins for manufacturing process optimization
• AI-assisted discovery of novel applications

These emerging applications and research directions highlight the continuing evolution of organophilic clay technology and its expanding role across diverse industries. As research advances, we can expect to see increasingly sophisticated and specialized organophilic clay products designed for specific high-value applications.

Comprehensive Organophilic Clay Product Guide

Selecting the right organophilic clay product is critical for achieving optimal performance in your specific application. This comprehensive guide will help you navigate the various options available and make informed procurement decisions.

Product Classification and Types

Organophilic clays can be classified into several categories based on their composition, properties, and intended applications. Understanding these classifications is essential for selecting the most appropriate product for your needs.

Bentonite-Based Organophilic Clays

Bentonite-based organophilic clays are the most common and widely used type:

1. Standard Drilling-Grade Products:

• Description: General-purpose organophilic clays designed for conventional oil-based drilling fluids.
• Key Features: Good rheological properties, moderate temperature stability (up to 350°F/177°C), cost-effective.
• Common Products: VG-69, BENTONE 34, CP-982, and similar products from various manufacturers.
• Best For: Standard drilling operations, conventional oil-based mud systems, moderate temperature applications.
  2. High-Temperature Drilling Grades:
• Description: Specially formulated for high-temperature drilling environments.
• Key Features: Enhanced thermal stability (up to 450°F/232°C), maintained rheological properties at elevated temperatures, specialized organic modifiers.
• Common Products: VG-PLUS, BENTONE 128, CP-990HT, and similar specialized grades.
• Best For: Deep wells, high-temperature formations, geothermal drilling, HPHT applications.
  3. Industrial-Grade Products:
• Description: Formulated specifically for industrial applications rather than drilling.
• Key Features: Controlled particle size, consistent activation, optimized for solvent compatibility.
• Common Products: BENTONE 27, CLAYTONE-40, CP-150, and similar industrial grades.
• Best For: Paints, coatings, greases, adhesives, and other industrial formulations.
  4. Purified White Grades:
• Description: Highly purified bentonite-based organophilic clays with minimal colored impurities.
• Key Features: Excellent whiteness, minimal impact on product color, high purity.
• Common Products: BENTONE SD-1, CLAYTONE-APA, CP-WHITE, and similar white grades.
• Best For: Clear coatings, white or light-colored formulations, cosmetics, and applications where color is critical.

Hectorite-Based Organophilic Clays

Hectorite-based organophilic clays offer unique properties for specialized applications:

1. Standard Hectorite Grades:

• Description: Organically modified hectorite clay.
• Key Features: Higher clarity than bentonite-based products, excellent suspension properties, finer particle size.
• Common Products: BENTONE EW, CLAYTONE-HT, CP-HECT, and similar hectorite-based products.
• Best For: Clear gel systems, transparent formulations, applications requiring minimal haze.
  2. High-Efficiency Hectorite Grades:
• Description: Advanced hectorite-based products designed for maximum efficiency.
• Key Features: Effective at lower concentrations, rapid activation, enhanced rheological properties.
• Common Products: BENTONE LUXE, CLAYTONE-XL, CP-HECT PLUS, and similar premium grades.
• Best For: Premium formulations, cost-sensitive applications where lower dosage is desired, systems requiring rapid processing.
  3. Specialty Hectorite Formulations:
• Description: Highly specialized hectorite-based products for specific applications.
• Key Features: Tailored properties for particular systems, often with specialized organic modifiers.
• Common Products: Application-specific grades from major manufacturers.
• Best For: Niche applications with specific performance requirements, custom formulations.

Attapulgite-Based Organophilic Clays

Attapulgite-based organophilic clays provide unique rheological profiles:

1. Standard Attapulgite Grades:

• Description: Organically modified attapulgite (palygorskite) clay.
• Key Features: Needle-like structure, unique thixotropic properties, effective in high-salt environments.
• Common Products: BENTONE AT, CLAYTONE-PA, CP-ATTAP, and similar attapulgite-based products.
• Best For: High-salt systems, applications requiring unique flow properties, specialized drilling fluids.
  2. High-Performance Attapulgite Grades:
• Description: Advanced attapulgite-based products with enhanced properties.
• Key Features: Superior suspension properties, enhanced salt tolerance, specialized organic modifiers.
• Common Products: Premium attapulgite-based grades from major manufacturers.
• Best For: Challenging environments, specialized industrial applications, systems where bentonite-based products underperform.

Specialty and Custom Formulations

Beyond standard classifications, numerous specialty products address specific needs:

1. Multi-Component Blends:

• Description: Pre-blended products combining organophilic clay with activators or other additives.
• Key Features: Simplified handling, consistent performance, optimized activation.
• Common Products: Various proprietary blends from manufacturers.
• Best For: Simplified operations, consistent batch-to-batch performance, applications where precise dosing is critical.
  2. Application-Specific Formulations:
• Description: Products designed for specific applications or industries.
• Key Features: Optimized performance for particular systems, often with specialized organic modifiers.
• Common Products: Industry-specific grades from major manufacturers.
• Best For: Specialized applications with unique requirements, industries with specific performance standards.
  3. Custom-Engineered Products:
• Description: Tailor-made organophilic clays developed for specific customer requirements.
• Key Features: Optimized for specific systems, proprietary formulations, unique performance profiles.
• Common Products: Available through direct collaboration with manufacturers.
• Best For: Unique applications, proprietary systems, performance-critical formulations where standard products are inadequate.

Understanding these product classifications provides the foundation for selecting the most appropriate organophilic clay for your specific application needs.

Performance Comparison

When selecting an organophilic clay product, understanding performance differences between various types is essential for making optimal choices.

Viscosity and Rheological Performance

Different organophilic clay types exhibit distinct rheological behaviors:

Key performance insights:

1. Efficiency Comparison:

• Hectorite-based products typically require 15-30% lower concentrations than bentonite-based products for equivalent viscosity.
• Attapulgite-based products often require higher concentrations but provide unique rheological profiles.
• High-efficiency grades can reduce dosage requirements by up to 40% compared to standard grades.
  2. Rheological Profile Differences:
• Bentonite-based products generally provide stronger gel structures and higher yield values.
• Hectorite-based products offer smoother flow curves and better shear-thinning behavior.
• Attapulgite-based products create highly thixotropic systems with excellent sag resistance.
  3. Application-Specific Performance:
• For drilling fluids, bentonite-based products typically provide the best overall balance of properties.
• For clear coatings and cosmetics, hectorite-based products offer superior clarity and aesthetics.
• For specialized industrial applications requiring extreme thixotropy, attapulgite-based products often excel.

Temperature Stability Comparison

Temperature stability is critical for many applications, particularly in drilling fluids and industrial processes:

Key temperature stability insights:

1. High-Temperature Applications:

• For applications above 350°F (177°C), specialized high-temperature grades are essential.
• The organic modifier type has more influence on temperature stability than the base clay mineral.
• Quaternary ammonium compounds with longer alkyl chains and fewer hydroxyl groups generally provide better thermal stability.
  2. Temperature Cycling Effects:
• Standard grades may show significant property changes during temperature cycling.
• High-temperature grades typically maintain more consistent properties during heating and cooling cycles.
• Some specialty formulations are specifically designed for applications with frequent temperature fluctuations.
  3. Long-Term Thermal Exposure:
• Extended exposure even below maximum temperature can gradually degrade performance.
• High-temperature grades typically show 2-3 times longer effective lifetimes at elevated temperatures.
• Proper selection can significantly reduce the need for frequent treatment additions in high-temperature applications.

Chemical Resistance Comparison

Resistance to various chemicals and environments varies significantly between organophilic clay types:

Key chemical resistance insights:

1. Salinity Effects:

• Attapulgite-based products generally offer superior performance in high-salt environments.
• Specialty bentonite-based products with specific organic modifiers can provide enhanced salt tolerance.
• Standard bentonite-based products may require higher concentrations in saline environments.
  2. pH Sensitivity:
• Most organophilic clays perform optimally in pH ranges of 6-9.
• Extreme pH conditions (below 4 or above 10) can degrade performance of standard products.
• Specialty grades with acid/alkali-resistant organic modifiers are available for extreme pH environments.
  3. Solvent Compatibility:
• The organic modifier type significantly influences solvent compatibility.
• Bentonite-based products typically excel in aliphatic and aromatic hydrocarbon systems.
• Hectorite-based products often perform better in polar organic systems.
• Specialty grades are available for challenging solvent systems like ketones and esters.

Cost-Performance Analysis

Understanding the cost-performance relationship is essential for making economically sound decisions:

Key cost-performance insights:

1. Total Formulation Cost Impact:

• Higher-efficiency products may justify their premium price through reduced usage rates.
• Hectorite-based products typically require 15-30% lower concentrations, potentially offsetting their higher unit cost.
• In some applications, specialty grades can reduce overall formulation costs by eliminating the need for additional additives.
  2. Application-Specific Value:
• For standard drilling operations, conventional bentonite-based products typically offer the best value.
• For premium industrial applications where appearance and performance are critical, hectorite-based products often provide superior value despite higher costs.
• For challenging environments, the higher cost of specialty grades is typically justified by their superior performance and reduced maintenance requirements.
  3. Long-Term Economic Considerations:
• Higher-performance products often reduce maintenance costs and extend system life.
• In drilling applications, premium products can reduce non-productive time, providing substantial economic benefits beyond direct material costs.
• In industrial applications, higher-quality organophilic clays can improve product quality and reduce rejection rates.

This performance comparison provides a framework for evaluating different organophilic clay options based on your specific application requirements and economic considerations.

Contact Us for Organophilic Clay Solutions

Ready to optimize your application with the right organophilic clay solution? Our team of technical experts is available to provide personalized assistance and support your success.

Technical Consultation Services

Our experienced technical team offers comprehensive consultation services to help you select and implement the optimal organophilic clay solution:

• Application Assessment: Detailed evaluation of your specific requirements and challenges
• Product Selection Guidance: Expert recommendations based on your application parameters
• Formulation Optimization: Assistance with integrating organophilic clay into your system
• Troubleshooting Support: Resolution of performance issues and optimization challenges
• Technical Training: Educational resources for your team on best practices

Our consultants combine deep product knowledge with practical application experience across diverse industries, ensuring you receive relevant, actionable guidance.

Product Customization Options

Beyond our standard product range, we offer customization services to address unique requirements:

• Performance Optimization: Tailored products for specific performance parameters
• Application-Specific Formulations: Custom products designed for your particular application
• Packaging Adaptations: Flexible packaging options to suit your handling capabilities
• Blended Solutions: Pre-blended products with activators or complementary additives
• Proprietary Formulations: Exclusive products developed for your specific needs

Our development team works closely with customers to create customized solutions that deliver exceptional value for specialized applications.

Sample Request Process

Evaluating our products in your specific application is a critical step in the selection process:

1. Initial Consultation: Brief discussion of your application and requirements
2. Sample Selection: Identification of appropriate products for evaluation
3. Sample Provision: Prompt delivery of laboratory samples for testing
4. Testing Guidance: Recommendations for evaluation protocols
5. Results Review: Collaborative analysis of performance results
6. Implementation Planning: Support for full-scale implementation

To request samples, simply contact our technical team with basic information about your application, and we’ll guide you through the process.

Technical Support Resources

We provide comprehensive technical resources to support your success with our products:

• Technical Data Sheets: Detailed product specifications and performance data
• Application Guides: Industry-specific guidance for optimal product use
• Safety Documentation: Complete safety data sheets and handling information
• Testing Protocols: Standardized methods for product evaluation
• Case Studies: Real-world examples of successful implementations
• Troubleshooting Guides: Solutions for common challenges

Our technical resources are continuously updated to reflect the latest product developments and application insights.

Global Distribution Network

Our extensive distribution network ensures reliable product availability worldwide:

• Regional Warehousing: Strategically located inventory for prompt delivery
• Logistics Expertise: Efficient shipping and customs clearance support
• Local Technical Support: Region-specific application assistance
• Consistent Global Quality: Standardized manufacturing across all production facilities
• Supply Chain Security: Robust contingency planning and multiple supply sources

Whether your operations are local or global, we provide consistent product quality and reliable supply to support your business continuity.

Contact us today to discuss how our organophilic clay solutions can enhance your application performance and deliver measurable value to your operations.
