Bentonite Gel Drilling Additives with good Suspendability.

The Organoclay bentonite | Organophilic clay -specialized Zhejiang Camp-Shinning New Material CO.,LTD. and Hangzhou Camp-Shinning CO.,LTD. are subsidiaries of Camp-Shinning.

Camp-shinning concentrated on high value-added, high-technology organo bentonite series products, particularly in research, development, manufacturing, and sales of organic (solvent based organoclay) and inorganic bentonite (water based organoclay).

Our Organophilic bentonite clay finds widespread application in oil drilling mud, paint, coating, lubricating grease, adhesive, construction mortar, cosmetics, and waste water treatment, among other applications. A group of world-class professional users and distributors, such as SUN CHEMICAL,,SIEGWERK,LEHMANN &VOsS, and others, have acknowledged our dependable quality.
Current annual production of organic bentonite clay | organoclay is 20,000 metric tons, while refined bentonite production is 15,000 metric tons.

Our ISO 9001 quality system certification and IS014001 environmental management system certification, as well as our own mine with superior ore quality and production of proprietary technology, ensure the long-term quality and supply stability of our Organoclay bentonite | Organophilic clay.
Our mission is to provide users with superior Organoclay bentonite | Organophilic clay and services and to collaborate with them to achieve success and glory.

Internet address:  https://www.rheologymodifiers.com/ and email address: [email protected]

Whatsapp / Wechat: +86-13185071071

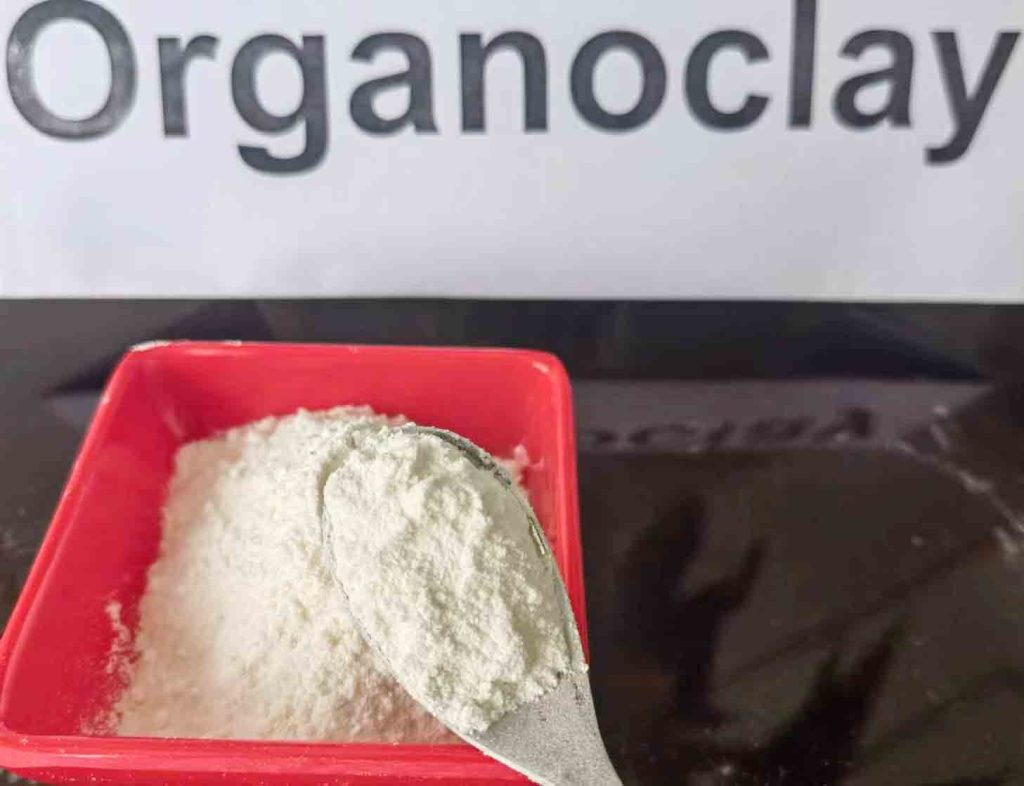

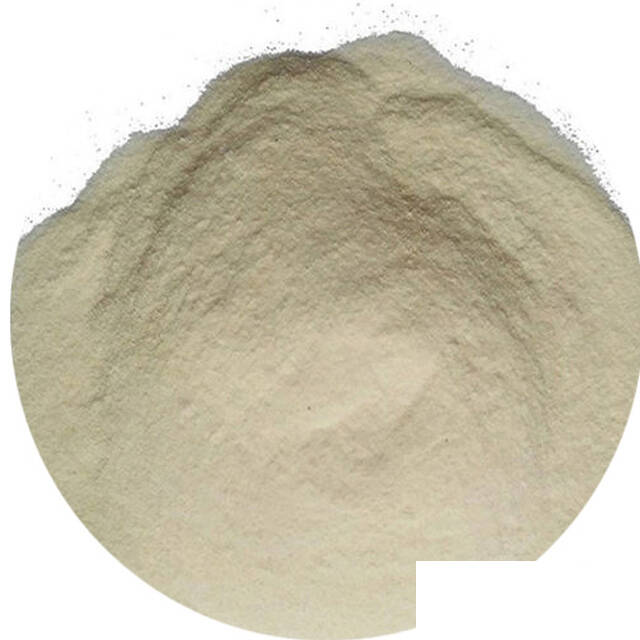

Organoclay | Organophilic Clay CP-2 also named amine treated Bentonite.

In diesel oil based fluids,organophilic clay viscosifier CP-2 are used to increase carrying capacity and suspension properties, providing support for weight materials and improved cutting removal. Organophilic bentonite also aids in filter-cake formation and filtration control.

Properties

Composition                               Organically modified bentonite clay

Physical appearance                Off white to tan free-flowing powder

Moisture content (105℃,2hr)         ≤4%

Particle size (<76μm or 200mesh)    ≥95%

Specific Gravity                                    1.6-1.8

Advantages

Effective viscosifier and gellant

Aids control of fluid loss to the formation

Increases emulsion stability

Improves cuttings carrying and hole cleaning capacity

Suspends weighting materials and other solids

Confers temperature stability to the fluid

Application

Base oil:

Diesel Oils

Crude Oils

Mineral Oils

Synthetic Oil

Viscosifying drilling Fluids:

Oil based drilling fluids

Invert emulsion fluids

Workover fluids

Completion fluids

Casing packs

Packer fluids

Spotting fluids

Package

Organoclay | Organophilic Clay CP-2 is packed in 50lb(22.7kg) or 25kg/bag or customized,multi-wall paper sacks or Kraft paper bag with PE liner or customized.

Storage

CP-2 Store in a dry, well-ventilated area with temperature of 0℃-30℃.  Keep container closed. The quality guarantee period is 24 months.

Notice

The information on use is based on data which are believed reliable, but any recommendation or suggestion made is without guarantee or warranty, since the conditions of use are outside our control. All products are sold on the conditions that purchasers shall make their own tests to determine the suitability of such products for their purpose and that all risks are assumed by user. We disclaim any responsibility for damages resulting from careless or improper handling or use. Nothing herein is to be taken as permission, inducement or recommendation to practice any patented invention without a license.

Internet address: https://www.rheologicaladditive.com/ and email address: [email protected]

Whatsapp / Wechat: +86-13185071071

Bentonite Gel Drilling Additives

Bentonite Gel Drilling Additives Organoclay materials are mined and produced vertically integrated by Bentonite Performance Minerals. We design our products to specifically address the needs of our customers. We provide a variety of Organoclay products. Discover more about them down below. CP-982 :Bentonite Gel Drilling Additives In oil muds and synthetic-based systems, CP-982 organoclay bentonites are utilized as a viscosifier and gelling agent. Additionally, they serve as a filtration control agent. The CP-982 viscosifier enhances carrying capacity and facilitates filter cake development in oil muds. In specialized applications, CP-982 is especially effective. It’s important to employ enough agitation and shear to get the desired viscosity. Oilfield applications benefit greatly from the drilling fluid CP-982 organoclay bentonitol gel. It is rheologically active and very dispersible. It also performs well in water-based systems and is quite affordable. It can be used with base oils with low BTEX, mineral oil, and all-oil. Low polymer netting ability was a problem with bent drilling fluid. This characteristic allowed it to stay suspended over a wide temperature range. Rolling also reduced the density of the bent drilling fluid, but it kept its ability to hang solidly. Bent drilling fluid is a porous substance, thus it is crucial to keep in mind that it is challenging to reduce filtration at high temperatures. Organoclay and bentonite gel drilling additives from CP-992 are suited for mineral oil, low-BTEX base oils, and diesel oils and are made for use in solvent-based systems. They can also be employed as viscosifiers in wet processes. CP-992 organoclay-bentonite gel drilling fluids satisfy and exhibit similar rheology to WD drilling fluid. Additionally, they have a higher consistency index, a higher yield point, and better structural strength. The CP-992 organoclay-bentonite drilling fluid’s formula is created to satisfy the performance requirements for the best oil and gas drilling fluids. It is the perfect adsorbent for organic molecules due to its distinct structure and chemistry. Additionally, the CP-992 organoclay-bentonite drilling additives enhance the ability to clean holes and regulate borehole stability. In addition to being utilized for oil and gas drilling, it is also employed in foundations, steel foundries, and water treatment. Oil-based drilling fluids can be thickened using organophilic clays. They aid in filtering as well. Both dry clay and clay that has been dissolved in water can be treated with their fatty-acid amines. The latter, however, costs more and calls for screening. Additionally, oil muds may make use of organophilic bentonites. They might not, however, offer a durable gel structure. Bentonite is a common ingredient in a variety of industrial operations in addition to drilling fluids. Because it is challenging to decrease this porous material, its thermoresponsive qualities are helpful. Bentonite Gel Drilling Additives The composite can drill for oil and gas in hot environments. Above its critical phase transition temperature, it switches extremely steadily in water. This substance can be utilized as a clever water-based substitute for traditional bentonite in drilling fluids. Additionally, it demonstrates self-recovery behavior under rheology, filtration, and plugging. Bentonite enhances drilling fluid filtration when used as a drilling fluid. When drilling at 110 degrees Celsius, the drilling fluid exhibits self-recovery behavior. Additionally, it has great potential for drilling hot strata.
